這是裝在2級減壓式的2級端使用的調壓器。可把進口壓力0.25-1.5kgf/cm2降到適當?shù)娜紵龎毫Φ?級減壓2級調壓器。
|
|
| |
|
|
|
| |
|
| |
|
![]() |

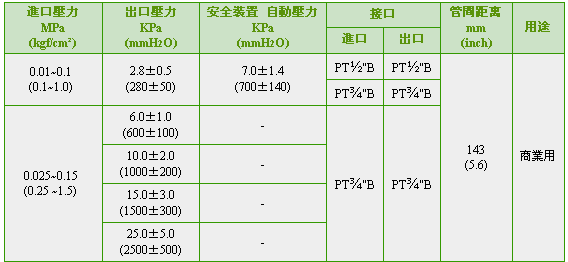

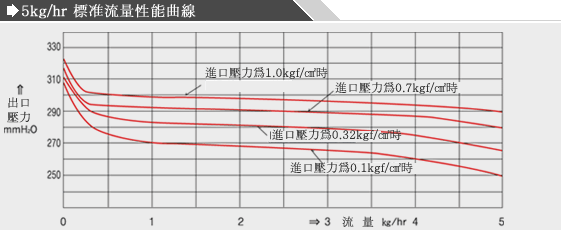

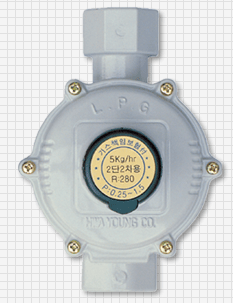

| LPG用2級減2級式調壓器 HYR-205 |
|
| |
|
| |
| |
|
|
| |
容量 kg/hr(Btu/hr -5(239,000))
|
|
| |
|
|
|
| |
|
![]() |

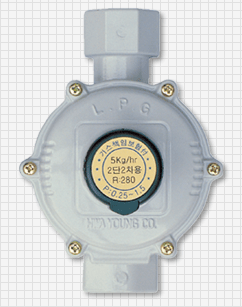

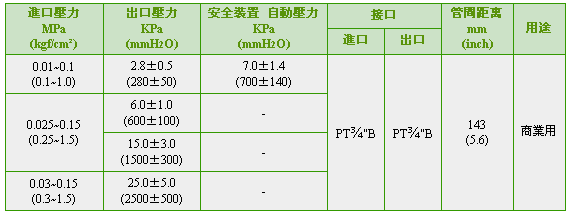

| LPG用2級減2級式調壓器 HYR-207 |
|
| |
|
| |
| |
|
|
| |
容量 kg/hr(Btu/hr -7(344,000))
|
|
| |
|
|
|
| |
|
![]() |

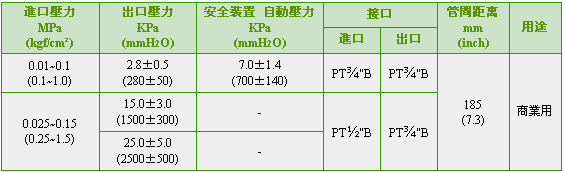

| LPG用2級減2級式調壓器 HYR-212 |
|
| |
|
| |
| |
|
|
| |
容量 kg/hr(Btu/hr -12(573,000))
|
|
| |
|
|
|
| |
|
![]() |

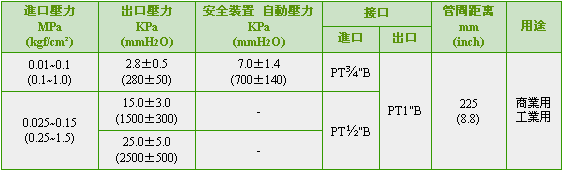

| LPG用2級減2級式調壓器 HYR-220 |
|
| |
|
| |
| |
|
|
| |
容量 kg/hr(Btu/hr -20(955,000))
|
|
| |
|
|
|
| |
|
![]() |

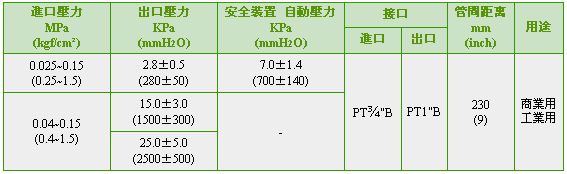

| LPG用2級減2級式調壓器 HYR-235 |
|
| |
|
| |
| |
|
|
| |
容量 kg/hr(Btu/hr -35(1,670,000))
|
|
| |
|
|
|
| |
|
![]() |
| LPG用2級減2級式調壓器 HYR-260 |
|
| |
|
| |
| |
|
|
| |
容量 kg/hr(Btu/hr -60(2,860,000))
|
|
| |
|
|
|
| |
|
![]() |
| LPG用2級減2級式調壓器 HYR-2100 |
|
| |
|
| |
| |
|
|
| |
容量 kg/hr(Btu/hr -100(4,770,000))
|
|
| |
|
|
|
| |
|
![]() |

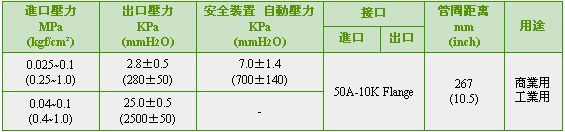

| LPG用2級減2級式調壓器 HYR-2200 |
|
| |
|
| |
| |
|
|
| |
容量 kg/hr(Btu/hr -200(9,550,000))
|
|
| |
|
|
|
| |
|
| |
