適用于中、低壓氣體計量表，產品系列包括11種不同計量的表型
 |
RX-250型
CLASS250家用型計量表 |
1000型
工業用中壓計量表 |
R-275型
家用型計量表 |
3000型
堅固型高壓計量表 |
415型
CLASS400計量表 |
5000型
大型工業用高壓計量表 |
750和1600型
計量表 |
10000型
大型工業用高壓計量計 |
|

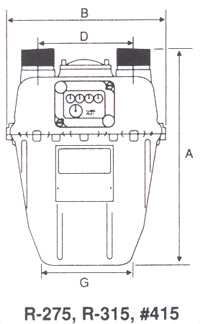

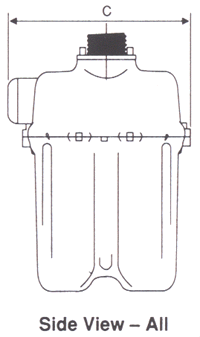

| 275型 415型 |
|
Meter
Model |
A |
B |
C |
D |
E |
F |
G |
| S-275 |
|
101/8" |
81/2" |
- |
131/4" |
- |
51/4" |
| R-275 |
1323/64" |
101/8" |
81/2" |
6" |
- |
- |
51/4" |
| R-315 |
1323/64" |
101/8" |
81/2" |
7" |
- |
- |
51/4" |
| #415 |
1437/64" |
111/8" |
93/8" |
7"or81/4" |
- |
- |
6" |
| RT-230 |
135/8" |
101/8" |
81/2" |
- |
- |
111/4" |
51/4" |
| RT-275 |
135/8" |
101/8" |
81/2" |
- |
- |
111/4" |
51/4" |
| 型號 |
流量Capacity-SCFH
1/2"W.C.Diff. |
最高
使用壓力 |
重量 |
No.of Rev.
Per
Ft3 |
Stuff.
Box
Shaft
Ft3/Rev. |
接駁
Meter Connections
Avallable |
| 天然氣 |
丁烷 |
丙烷 |
空氣 |
R-275
R-315
#415 |
275
315
415 |
150
170
225 |
175
200
260 |
215
245
320 |
5-10
5-10
10-25 |
14
14
21 |
8
8
6.5 |
2
2
2 |
10,20,30 Lt；11/4",1A spg, #2 spg.
20,30,45 Lt；11/4",1A spg, #2 spg
20,30,45 Lt；11/4",1A spg, #2 spg; #3 spg |
| S-275 |
250 |
150 |
175 |
195 |
5-10 |
14 |
8 |
2 |
3/4" NPT |
RT-230
RT-275 |
210
250 |
|
|
|
5
5 |
14
14 |
8
8 |
2
2 |
5 Lt.
10 Lt. |
|
| 型號 |
最高使用壓力 |
流量@1/2"w.c.
diff.of 0.6
sp.Gr.GasCFH |
Capacity
@1/2"w.c.
diff.of 0.6
sp.Gr.GasCFH |
ft3/REV of output shaft standard* |
REV/cu.ft. |
凈重 |
毛重 |
接駁 |
其他接駁 |
| 750 |
20 |
750 |
1600 |
10 |
2.6 |
51 |
55 |
45Lt. |
30,60Lt.,No.3 Spg.,11/2"FPT |
| 1600 |
100 |
800 |
1600 |
10 |
2.6 |
70 |
75 |
45Lt. |
30,60Lt.,No.3 Spg.,11/2"FPT |
| 1600-500+ |
500 |
800 |
1600 |
10 |
2.6 |
440 |
500 |
2"-111/2"PT |
2"Flange |
| 1000 |
25 |
1000 |
2200 |
10 |
1.6 |
55 |
60 |
45Lt. |
60,100Lt.,No.3 Spg.,11/2"or2"FPT
No.5 Spg.
on 1000 only |
3000
wo/flanges |
100 |
1450 |
3000 |
10 |
1.3 |
107 |
135 |
3"-8"PT |
2"-111/2"PT |
| wo/flanges |
100 |
1450 |
3000 |
10 |
1.3 |
120 |
154 |
3"Flange |
2"Flange |
5000
wo/flanges |
100 |
2500 |
5000 |
10 |
.5 |
198 |
238 |
4"-8"PT |
3"-8"PT |
| wo/flanges |
100 |
2500 |
5000 |
10 |
.5 |
233 |
270 |
4"Flange |
3"Flange |
10000
wo/flanges |
100 |
5000 |
10000 |
100 |
.32 |
323 |
389 |
4"-8"PT |
3"-8"PT |
| wo/flanges |
100 |
5000 |
10000 |
100 |
.32 |
360 |
420 |
4"Flange |
3"Flange |
|
