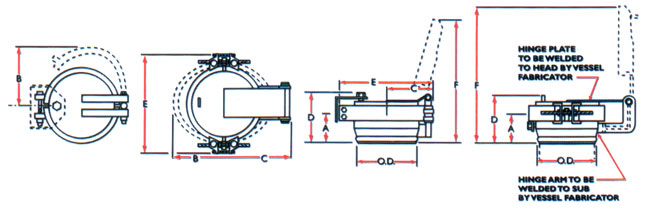

| CLASS400＆600 |
尺寸（英寸） |
重量
（磅） |
NOM
size
|
FIG. |
A |
B |
C |
D |
E |
F |
LPS. |
| 6 |
1 |
4 |
13 |
8 |
8 |
14 |
11 |
106 |
| 8 |
1 |
4 |
15 |
9 |
8 |
16 |
17 |
138 |
| 10 |
2 |
5 |
22 |
15 |
9 |
25 |
26 |
272 |
| 12 |
2 |
6 |
23 |
16 |
10 |
30 |
30 |
369 |
| 14 |
2 |
6 |
23 |
16 |
10 |
31 |
31 |
446 |
| 16 |
2 |
6 |
24 |
19 |
11 |
34 |
35 |
512 |
| 18 |
2 |
6 |
15 |
20 |
11 |
47 |
37 |
753 |
| 20 |
2 |
6 |
17 |
21 |
11 |
39 |
39 |
882 |
| 22 |
2 |
6 |
19 |
23 |
12 |
44 |
42 |
1163 |
| 24 |
2 |
6 |
20 |
24 |
12 |
46 |
45 |
1479 |
| 26 |
2 |
7 |
18 |
26 |
13 |
49 |
50 |
2002 |
| 28 |
2 |
8 |
19 |
28 |
15 |
52 |
54 |
2134 |
| 30 |
2 |
8 |
20 |
29 1/2 |
15 |
60 |
56 |
2494 |
|
|
| CLASS150＆300 |
尺寸（英寸） |
重量
（磅） |
NOM
size
|
FIG. |
A |
B |
C |
D |
E |
F |
LPS. |
| 6 |
1 |
4 |
13 |
8 |
8 |
14 |
11 |
106 |
| 8 |
1 |
4 |
15 |
9 |
8 |
16 |
17 |
138 |
| 10 |
2 |
5 |
11 |
15 |
9 |
25 |
26 |
272 |
| 12 |
2 |
6 |
12 |
16 |
10 |
29 |
30 |
323 |
| 14 |
2 |
6 |
12 |
16 |
10 |
30 |
30 |
354 |
| 16 |
2 |
6 |
13 |
17 |
10 |
33 |
32 |
415 |
| 18 |
2 |
6 |
15 |
19 |
10 |
35 |
35 |
554 |
| 20 |
2 |
6 |
16 |
20 |
10 |
37 |
38 |
631 |
| 22 |
2 |
6 |
17 |
21 |
10 |
39 |
39 |
721 |
| 24 |
2 |
6 |
18 |
22 |
11 |
42 |
42 |
930 |
| 26 |
2 |
6 |
16 |
24 1/2 |
11 |
43 |
46 |
1380 |
| 28 |
2 |
6 |
17 |
25 1/2 |
11 |
18 |
48 |
1486 |
| 30 |
2 |
6 |
19 |
27 |
12 |
50 |
50 |
1685 |
|
